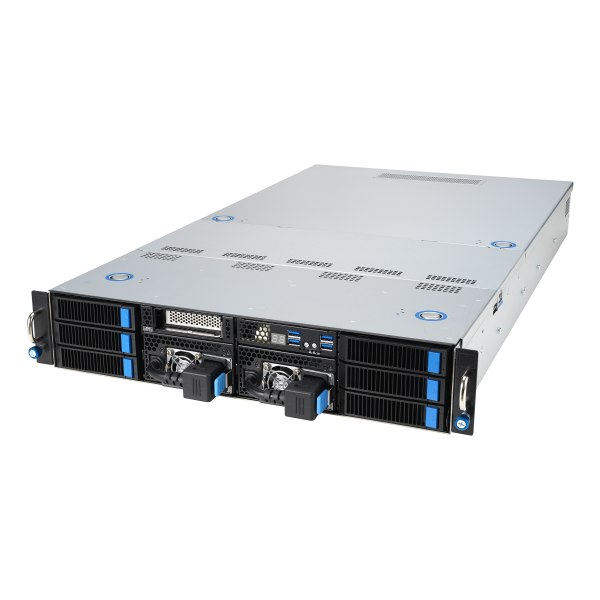

ESC4000-E11

2U dual-socket GPU server powered by 5th Gen Intel Xeon Scalable processors that supports four dual-slot GPUs, liquid cooling solution, 16 DIMM, six NVMe, two 2600W Titanium power supplies and ASUS ASMB11-iKVM

Key Features

  • Powerful Performance

  • AI & HPC Workloads Ready

  • Power-efficient System Design

  • Comprehensive Cooling Solutions

  • Scale-up Storage & Expansion Design

  • Flexible Networking Module Design

  • Enhanced IT-Infrastructure Management

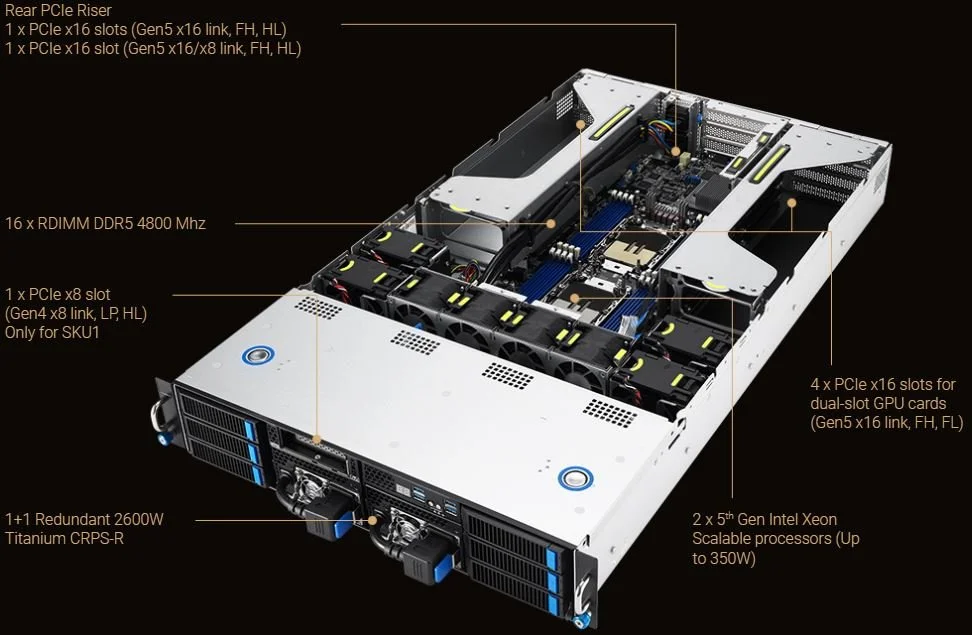

System Layout

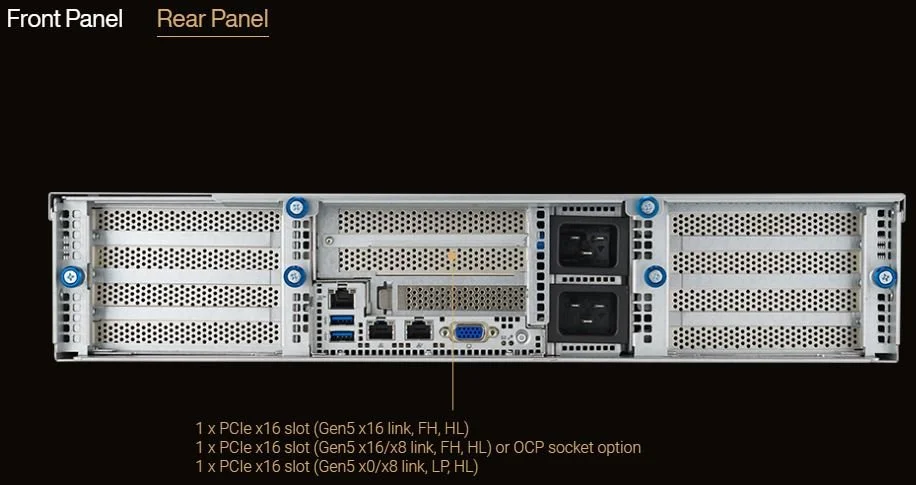

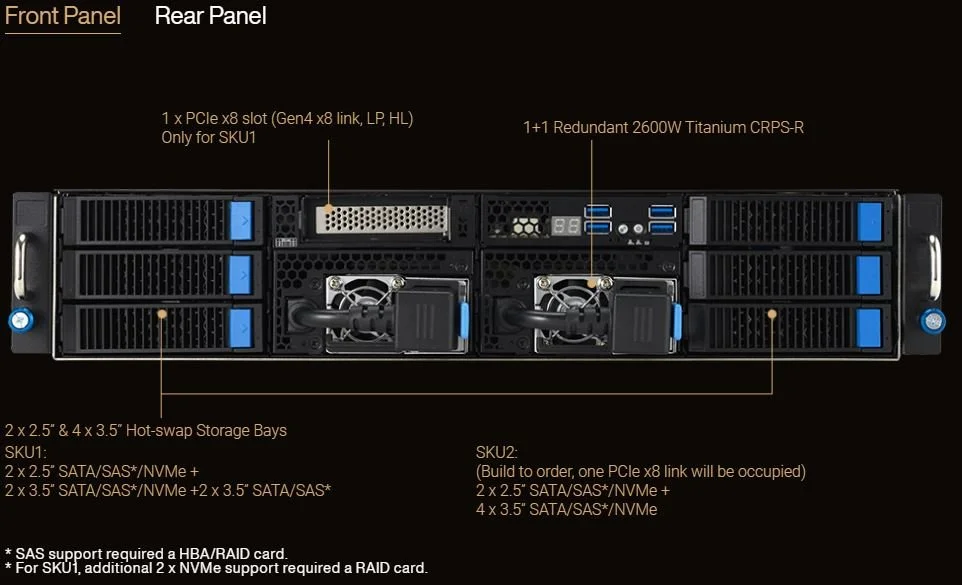

Panel Layout

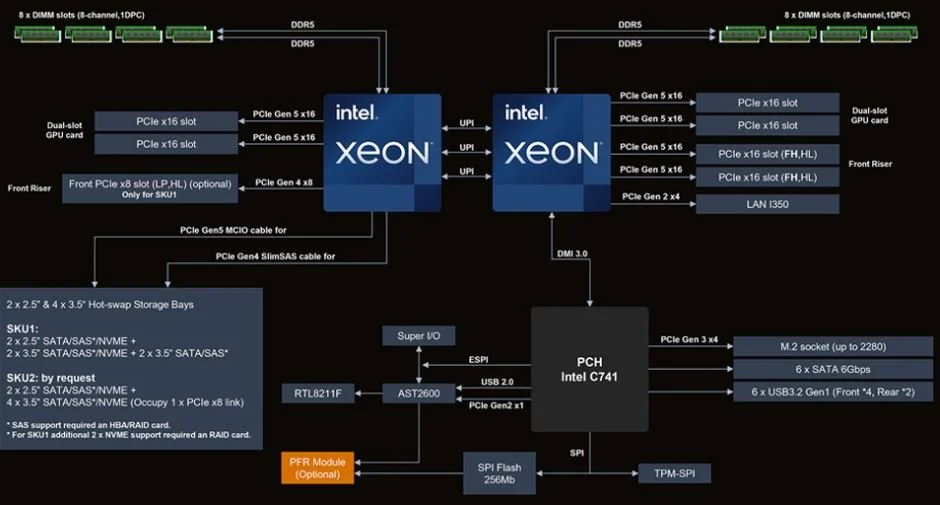

Block Diagram

Specifications

  • 2 x Socket

    4th Gen Intel® Xeon® Scalable processors (Up to 350W)

    5th Gen Intel® Xeon® Scalable processors (Up to 350W)

  • Intel® C741 Chipset

  • Total slots:

    16 (8 channels per CPU, 8 DIMM per CPU)

    Capacity:

    Maximum up to 4TB per CPU socket

    Memory Type:

    4th: DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC)

    5th: DDR5 5600/4800 MHz RDIMM/3DS RDIMM (1DPC)

    512GB, 256GB, 128GB Intel® Optane™ persistent memory 300 series

  • Rear:

    4 x PCIe x16 slots (Gen5 ×16 link, FH, FL) for dual-slot GPU cards

    or

    8 x PCIe x16 slots (Gen5 ×8 link, FH, FL) for single-slot GPU cards

    -2 x PCIe x16 slots (Gen5 ×16 link, FH, HL)

    Front:

    1 x PCIe x8 slot (Gen4 ×8 link, LP, HL)

  • 2 × 2.5” & 4 × 3.5” Hot-swap Storage Bays

    SKU1:

    2 × 2.5” SATA/SAS*/NVMe +

    2 × 3.5” SATA/SAS*/NVMe + 2 × 3.5” SATA/SAS*

    SKU2: Build to order

    2 × 2.5” SATA/SAS*/NVMe +

    4 × 3.5” SATA/SAS*/NVMe (Occupy 1 x PCIe x8 link)

    *SAS support required a HBA/RAID card.

    **For SKU1 additional 2 x NVMe support required a RADI card.

    1 x M.2 socket (Gen3 ×4 link PCIe mode, up to 2280)

  • 2 × 1 Gigabit LAN ports (Intel I350 Controller)

  • Please find the latest GPU support from https://servers.asus.com/support/gpu

  • 4 x USB 3.2 Gen1 ports

  • 2 x USB 3.2 Gen1 ports

    2 x Gigabit LAN ports (RJ45)

    1 x Management port (RJ45

    1 x VGA port

  • Front:

    1 x Power Button/LED

    1 x Location Button/LED

    1 x Message LED

    1 x Q-Code/Port 80 LED

    2 x LAN LED

    Rear:

    1 x Power Button/LED

    1 x Location LED

    1 x Message LED

  • Windows Server

    RedHat® Enterprise Linux

    SuSE® Linux Enterprise Server

    CentOS

    Ubuntu

    Vmware

    *Please find the latest OS support from https://servers.asus.com/support/os

  • Asus Control Center

    ASUS ASMB11-iKVM (on-board)

  • BSMI, CE, RCM, FCC(Class A)

  • 800mm x 439.5mm x 88.9mm (2U)

    31.50” x 17.30” x 3.50”

  • Net Weight: 26 Kg

    Gross Weight: 36.8 Kg

  • 1+1 Redundant 2600W 80 PLUS Titanium CRPS-R Power Supply

    *2600W PSU supports 1+1 redundant with GPU card power consumption ≦ 300W

  • Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃

    Non operation humidity: 20% ~ 90% ( Non condensing)
