RS300-E12-RS4

ASUS RS300-E12-RS4 in an Intel® Xeon® E-2400 1U server with support for four DDR5 ECC UDIMM, four NVMe, one M.2, one PCIe® 5.0 slot and one PCIe 4.0 slot, plus dual LAN, 80 PLUS® Platinum redundant power supplies, Intel Platform Firmware Resilience (PFR), onboard ASUS ASMB11-iKVM and chassis-intrusion alert.

Key Features

  • Powered by Eight-Core Intel Xeon E-2400-series Processor with Support for up to 95 W TDP

  • Four 3.5-inch or 2.5-inch Hot-Swap Drives on Front Panel and one M.2 to Enable Extensive Storage

  • Up to One PCIe 5.0 Slot and One PCIe 4.0 Proprietary Slot to Drive Higher Bandwidth

  • High Power Efficiency with Redundant 450 W 80 PLUS Platinum Power Supplies

  • Dual Intel I210-AT Gigabit Ethernet with Teaming Support

  • Onboard ASUS ASMB11-iKVM for Out-of-Band Management with ASPEED AST2600 Controller

  • Integrated PFR FPGA as the Platform Root-of-Trust Solution for Firmware Resiliency

  • Chassis-Intrusion for Enhanced Physical Security

System Layout

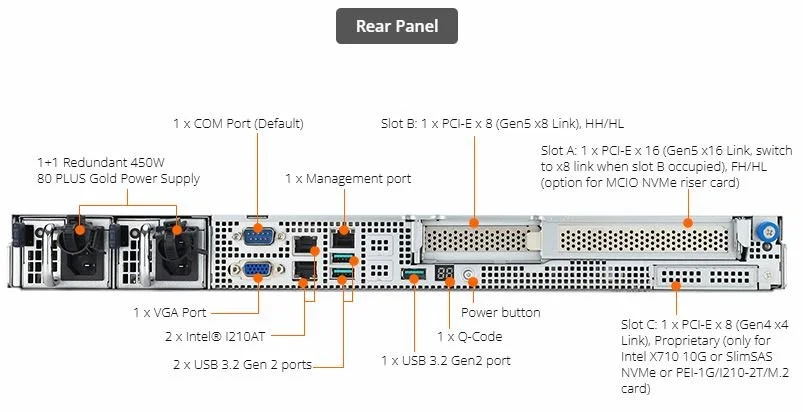

Panel Layout

Specifications

  • 1 x Socket LGA1700

    Intel® Xeon® processor E-2400 family

    Intel® Pentium™ processors

    *Refer to support page for more information

  • E12

  • Intel® C262 Chipset

  • Total Slots :

    4 (2-channel)

    Capacity :

    Maximum up to 128GB UDIMM

    Memory Type :

    DDR5 4400/4000/3600 UDIMM

    Memory Size :

    32GB, 16GB, 8GB UDIMM

    * Refer to support page for more information

  • Total PCI-E Slots: 3

    1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL

    1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*

    1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slot

    (optional for Intel X710 10G LAN card or PEI-1G/I210-2T/M,2 card)

  • Storage Controller :

    Intel® C262 Chipset

    8 x SATA3 6Gb/s ports

    SAS Controller :

    ASUS PIKE II 3008-8i 8-port SAS 12G RAID card

    ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

  • 4 x 3.5” Hot-Swap HDD Bays

    -up to (4*SATA/SAS/NVMe)

    *SAS support only from optional SAS HBA/RAID card

    *NVMe support only from optional NVMe upgrade kit

  • 1 x Slim-type Optical Drive Bay

    Options: No Device / DVD-RW / DVD-ROM

  • 2 x Intel® I210AT + 1 x Mgmt LAN

  • Aspeed AST2600 with 64MB VRAM

  • Please find the latest GPU support from https://servers.asus.com/support/gpu

  • 1 x VGA port

    2 x USB 3.2 Gen1 ports

  • 3 x USB 3.2 Gen 2 ports

    1 x VGA port

    1 x COM port

    1 x RJ-45 ports

  • Rear Switch/LED:

    1 x Q-Code/Port 80 LED

    1 x Power switch

    Front Switch/LED:

    1 x Power switch/LED

    1 x Location switch/LED

    1 x Reset switch

    1 x HDD Access LED

    1 x Message LED

    LAN 1-2 LED

  • Please find the latest OS support from https://servers.asus.com/support/os

  • ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet

  • BSMI, CE, CB, FCC(Class A)

  • 497mm x 439.5mm x 44mm

  • 1U

  • 15.2kg

  • 1+1 Redundant 450W 80 PLUS PLATINUM Power Supply

  • Operating temperature: 10°C ~ 35°C

    Non operating temperature: -40°C ~ 70°C

    Non operating humidity: 20% ~ 90% ( Non condensing)
