RS700-E11-RS12U

1U dual-socket server powered by 5th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 4 PCIe 5.0 slots, 12 NVMe, 1 dual-slot GPU, OCP 3.0, ASUS ASMB11-iKVM

Key Features

  • Powerful Performance

  • Scale-up Storage & Expansion Design

  • Flexible Networking Module Design

  • Advanced Air Cooling Solution

  • Enhanced IT-Infrastructure Management

  • Ready for AI and HPC Workloads

System Layout

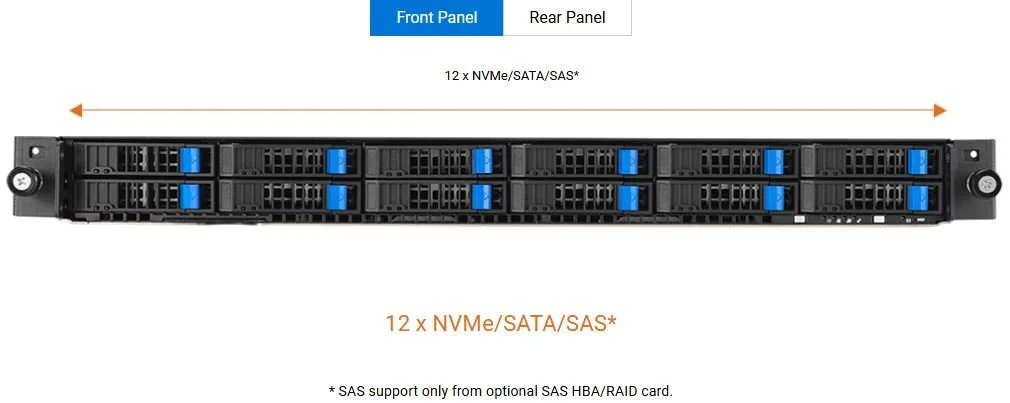

Panel Layout

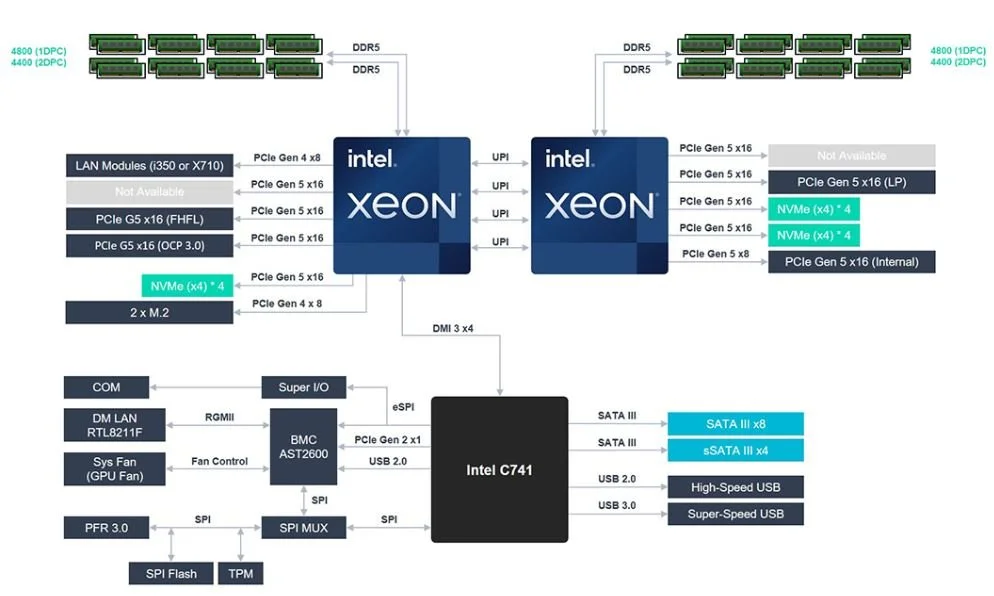

Block Diagram

  • Intel® Xeon® Processor Scalable Family

    4th/5th Generation

  • Intel® C741 Chipset

  • Total slots: 32 (8-channel per CPU, 16 DIMM per CPU)

    Capacity: Maximum up to 4TB

    Memory type: 4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC) 5th: 5600/4800 MHz (1DPC)/4400(2DPC)

    Memory size: 64GB, 32GB, 16GB RDIMM 256GB, 128GB RDIMM 3DS

  • Up to 3+1 PCIe slot

    1 x OCP 3.0 or PCIe G5 ×16 FHFL

    1 x PCIe G5 ×16 FHFL

    1 x PCIe G5 ×8. LP (Internal)

    1 x PCIe G5 ×16, LP

  • 12×2.5” NVMe/SATA/SAS* hot-swap bay (HBA/RAID is required to support SATA/SAS hard drives)

  • 12 × 2.5” hot-swap bay

    2 x M.2 slot

  • 9

  • 4 × 1Gbe(Intel I350-AM4) RJ45 port

    or

    2 × 10Gbe(Intel X710-AT2) RJ45 port

Specifications

  • Aspeed AST2600 64MB

  • 2 x USB 3.2 Gen1 ports

    1 x VGA port

    1 x RJ-45 Management LAN port

    2 × 10G or 4 × 1G RJ-45 GbE LAN port (optional)

  • Front Switch/LED:

    1 x Power Switch (w/LED)

    1 x Location Switch (w/LED)

  • 842.5mm x 439.5mm x 44mm

    22.56kg

  • 1u

  • 1+1 Redundant AC: 1200W/1600W 80 PLUS Platinum/Titanium Power Supply

  • Standard/EVAC Heatsink
